Photoresist Coat & Develop Systems to Suit Any Need

  • COAT
  • DEVELOP
  • SCRUB
Rite Track offers the broadest range of photoresist coat & develop systems in the industry to process substrates from 1.5″ square to 300 mm round, from the very fragile to the robust.  Rite Track offers customers a choice of either serial or random-path track platforms in application specific, custom configurations to best suit their unique process and budget requirements. Product lines are not limited to one OEM’s products. We focus on the industry’s best production equipment to match your needs.

Rite Track offers customized track solutions and enhancements for refurbished TEL Mark, TEL ACT & DNS 80 photoresist coat & develop systems as a recognized industry expert & for SVG 8X/ 9X systems as the exclusive product line owner.  Award-winning global support is available with locations worldwide.
Mark 7-8
Refurbished TEL Mark 8
Refurbished TEL ACT8
Refurbished TEL ACT8
SVG 90-S
SVG 90 S/SE
MARK Vz
Refurbished Mark Vz
SVG 88
SVG 88
SVG 86
SVG 86 sq Square Substrate
Refurbished DNS 80
Refurbished DNS 80

The Industry's Best Production Systems

Fully refurbished for value and performance

  • TEL ACT 8/12
  • TEL MARK 8
  • TEL MARK 7
  • TEL MARK Vz
  • SVG 90-S/SE
  • SVG 88
  • SVG 86
  • DNS 80
Request Track Information
Request TEL ACT 8 Quote or Information

TEL ACT 8 . TEL ACT 12

  • Refurbished, full warranty
  • Industry expert

The TEL ACT 8/12 is world-renowned for reliability & performance. Designed for high-volume production, the ACT 8/12 provides a fab friendly footprint with 7-Tier thermal units and stacked spin modules. It is capable of volume 100-200 mm & 300mm wafer production.

  • ACT 8: 100-200 mm wafers / ACT 12: 200-300mm wafers
  • Stacked coaters and developers
  • Seven-high stacked thermal modules
  • Proven reliability and process stability for I-Line, 248nm and 193nm processes.
  • GEM or SECS capable
ACT Upgrades
ACT Parts

TEL MARK 7 . TEL MARK 8

Request TEL Mark 7/8 Quote or Information

TEL MARK 7 . TEL MARK 8

  • Refurbished, full warranty
  • Industry expert

The MARK 7/8 is an industry-favorite photoresist coat-develop system with a vast install base capable of processing 100 to 200 mm Si, GaAs, Glass and Ceramic Wafers among others. Designed to meet the demands of high volume, high throughput manufacturing for sub-micron geometries, the MARK 7/8 triple arm transfer increases throughput over competing systems. Four tier stacked hot plates reduce system footprint while enhancing process control.

  • 100-200 mm Substrates
  • Random-Path Wafer Flows
  • Single Wafer/Lot Control
  • Four Tier Stacked Thermal Modules
  • Vacuumless Triple Arm Transfer
  • SECS I/II, GEM Compliant
Mark Upgrades
Mark Parts

SVG 90-S / SE

  • Refurbished, full warranty
  • Product line owner

Designed to meet the requirements of advanced photoresist process applications, from leading-edge manufacturing fabs, the 90-S/S offers 100mm – 200mm enhanced substrate handling with stacked thermal modules. Submicron processing (down to 0.18um) capabilities plus process and contamination control features make the 9X series ideal for submicron manufacturing environments in DUV or I-line settings.

A key automation feature is the MultiPath™ substrate transfer system, maximizing throughput by combining serial and random transfer modes while eliminating bottle necks caused by lengthy process steps. MultiPath also eliminates process control problems by ensuring that serial arms are present for substrate transfer between critical process steps such as post-exposure bake to chill.

  • 100-200mm Substrates
  • Random-Path Wafer Flows
  • MultiPath™ substrate transfer system
  • Single Wafer/Lot Control
  • Two Tier Stacked Thermal Modules
Request SVG 90-S Quote or Information
SVG 90-S
SVG Upgrades
SVG Parts

TEL MARK Vz

  • Refurbished, full warranty
  • Industry expert
The Mark Vz system provides random path capability and two tier thermal units to help reduce overall system footprint compared to competitive systems of its class. These systems provide affordable, random path processing to fabs with fragile or standard substrates.
  • 3″-150 mm Substrates
  • Random-Path Wafer Flows
  • Vacuumless Twin Arm Transfer
  • Two Tier Stacked Thermal Modules
  • Up to 120 wph
  • Single Wafer/Lot Control
Mark Upgrades
Mark Parts
MARK Vz
Request TEL Mark Vz Quote or Information

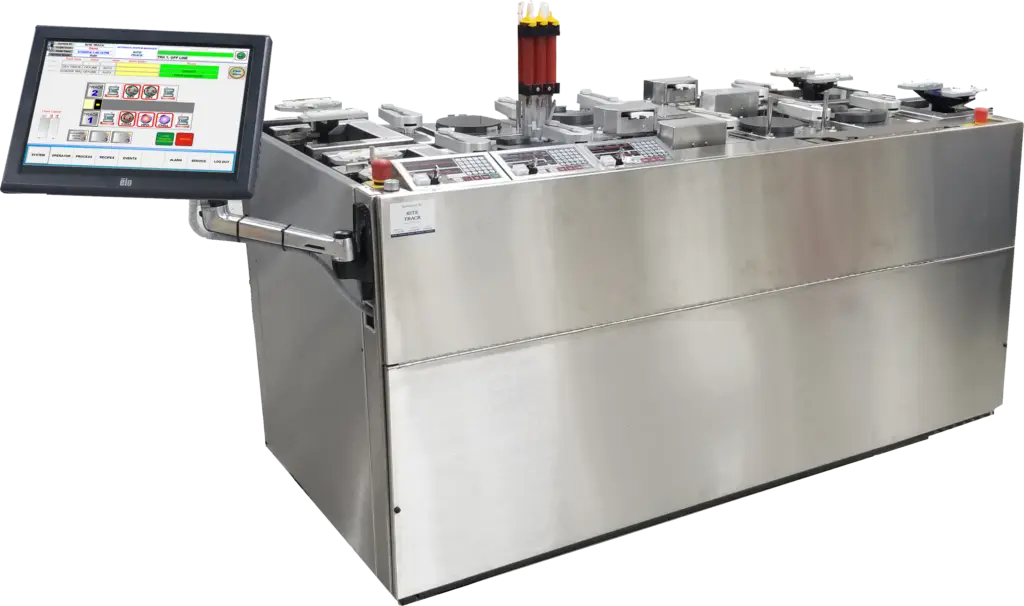

SVG 88

Request SVG 88 Quote or Information

SVG 88

  • New or refurbished, full warranty
  • Product line owner

The fully featured 88 Series is ideal for submicron manufacturing. All 88 series systems are capable of processing 3″ through 150 mm substrates. Silicon, GaAs, Sapphire, GGG, Lithium Niobate, thin film heads, MEMS and many other substrate types are routinely processed on 88 Series systems. Rite Track is the exclusive owner of the SVG 88 series product line (acquired in 2003) including the SVG 88 Coater, Developer, and Scrubber.

The 88 series uses an enhanced in-line robotic transfer arm between each module. Critical transfers, such as between soft bake and chill, are much more easily controlled compared to a totally random robotic system.

  • 3″-150 mm Substrates
  • Square or Round Substrates
  • Gentle, Belted Transfer
  • Single Wafer/Lot Control
  • SECS or GEM Host Communication with optional NetTRACK System Manager
  • 99 Recipe Capability with NetTRACK Option
SVG Upgrades
SVG Parts

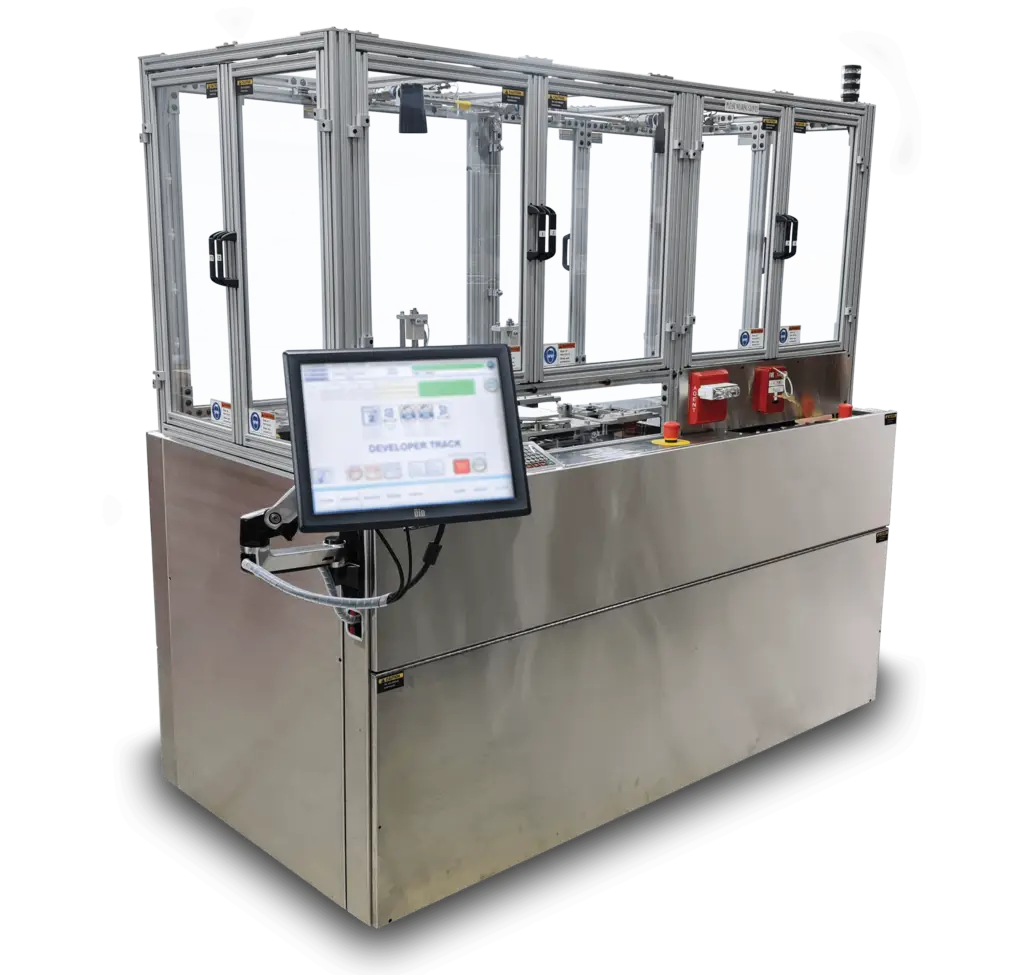

SVG 86

  • New or refurbished, full warranty
  • Product line owner
All 86 series systems are capable of processing 2″ through 150 mm substrates of all types. Fragile wafers and even square substrates up to 125 mm on a side (180 mm diagonal) are easily processed. The 86 series uses a simple and very forgiving belt transfer system to reduce wafer breakage. This belted system has low transfer overhead times, resulting in high throughput on an in-line track system.
  • 2″-150 mm Substrates
  • Square or Round Substrates
  • Gentle, Belted Transfer
  • Single Wafer/Lot Control
  • SECS or GEM Host Communication with optional NetTRACK System Manager
  • 99 Recipe Capability with NetTRACK Option
SVG Upgrades
SVG Parts
SVG 86
Request SVG 86 Quote or Information

Scrubber systems

Scrubber systems

  • Refurbished, full warranty
  • Industry expert

Shellback can provide a variety of scrubber systems based on your needs and budget. Scrub version include ultrasonic, hi pressure spray and/or brush scrub. See models listed below.

  • DNS SS-80B Scrubber with Nanospray Option
  • TEL Mark 7/8 Jet Scrub
  • SVG 86 and 88 Scrubber
  • DNS 80B Coat & Develop Systems also available
Request Scrubber Quote or Information
